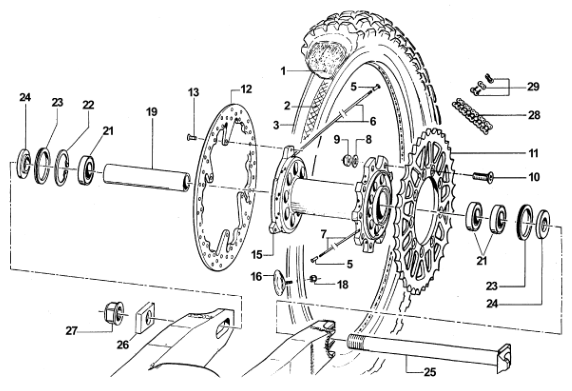

Rear Wheel
Vie hiiri kuvan päälle nähdäksesi kuvan suurempana. Suurennustasoa voi vaihtaa hiiren rullalla. Klikkaa kuvaa avataksesi sen uuteen välilehteen.
| No. | Tuotekoodi | Nimi | Tarv. määrä | Huom. | Hinta | Määrä | Osta |
|---|---|---|---|---|---|---|---|
| 1. | 80152 | Tube, tyre 19 | 1 | MX | 37,55 € | ||
| 80151 | Tube, tyre 18 | 1 | EN | 37,55 € | |||
| 2. | 70038 | Flap rear wheel 19 | 1 | MX | 8,79 € | ||
| 70033 | Flap rear wheel 18 | 1 | EN | 8,18 € | |||
| 3. | 70054 | Rear rim 1.85x19 takasago | 1 | MX | 531,24 € | ||
| 70053 | Rear rim 2.15x19 takasago | 1 | MX | 549,87 € | |||
| 70052 | Rear rim 1.85x18 takasago | 1 | EN | 453,98 € | |||
| 70055 | Rear rim 2.15x18 takasago | 1 | EN | 549,87 € | |||
| 5. | 70062 | Spoke nipple 4 mm | 36 | 2,50 € | |||
| 6. | 70243 | Spoke, 19 – 204x4 brake side | 18 | MX | 2,50 € | ||
| 70244 | Spoke, 18 – 192x4 brake side | 18 | EN | 2,50 € | |||
| 7. | 70242 | Spoke, 19 – 211x4 sprocket side | 18 | MX | 2,50 € | ||
| 70245 | Spoke, 18 – 199x4 sprocket side | 18 | EN | 2,50 € | |||
| 8. | 49611 | Washer steel 8mm | 9 | 2,50 € | |||
| 9. | 49644 | Nut | 9 | 2,50 € | |||
| 10. | 49421 | Bolt tsei 8x25 | 9 | 2,50 € | |||
| 11. | 70103.48 | Sprocket 48t, rear, m.86/-> | - | 75,66 € | |||
| 70103.49 | Sprocket 49t, rear, m.86/-> | - | 76,93 € | ||||
| 70103.50 | Sprocket 50t, rear, m.86/-> | - | 78,28 € | ||||
| 70103.51 | Sprocket 51t, rear, m.86/-> | - | 78,28 € | ||||
| 70103.52 | Sprocket 52t, rear, m.86/-> | - | 78,28 € | ||||
| 70103.53 | Sprocket 53t, rear, m.86/-> | - | 79,61 € | ||||
| 12. | 69210 | Brake disk, rear | 1 | 200,90 € | |||
| 13. | 49355 | Bolt 6x16 t.8 | 4 | 2,50 € | |||
| 15. | 70119.3 | Rear hub my 2015 | 1 | 549,11 € | |||
| 70119.15 | Rear hub 2015 -> assy | 608,14 € | |||||
| 16. | 70027 | Stopper 1,85, tube | 1 | 22,31 € | |||
| 70028 | Stopper 2.15 | 1 | 23,09 € | ||||
| 18. | 49640 | Nut 8mm, flange | 1 | 2,50 € | |||
| 19. | 70240 | Spacer int.rear wheel m.15-> | 1 | 16,74 € | |||
| 21. | 03071 | Bush, front wheel ma50 61905 | 3 | 20,22 € | |||
| 22. | 49250 | Circlip d.42 - rear wheel | 1 | 2,50 € | |||
| 23. | 04074 | Dust seal, rear wheel 15 -> | 2 | 5,36 € | |||
| 24. | 70241 | Collar rear wheel le.ri. 15-> | 2 | 12,92 € | |||
| 25. | 74055.15 | Axle, rear wheel m.15-> | 1 | 54,92 € | |||
| 26. | 70140.15 | Adj block, chain 15-threadless | 1 | 27,46 € | |||
| 27. | 49123 | Nut, rear wheel axle 15 -> | 1 | 19,97 € | |||
| 29. | 70142 | Chain | 1 | MX | 120,78 € | ||
| 70141 | Regina chain 135 orc 116 | 1 | END | 180,27 € | |||
| 30. | 70098 | Chain link 135 rx3 | - | MX | 6,41 € | ||
| 70091 | Chain joint 135 o ring | - | END | 9,75 € |
