Distribution
Vie hiiri kuvan päälle nähdäksesi kuvan suurempana. Suurennustasoa voi vaihtaa hiiren rullalla. Klikkaa kuvaa avataksesi sen uuteen välilehteen.

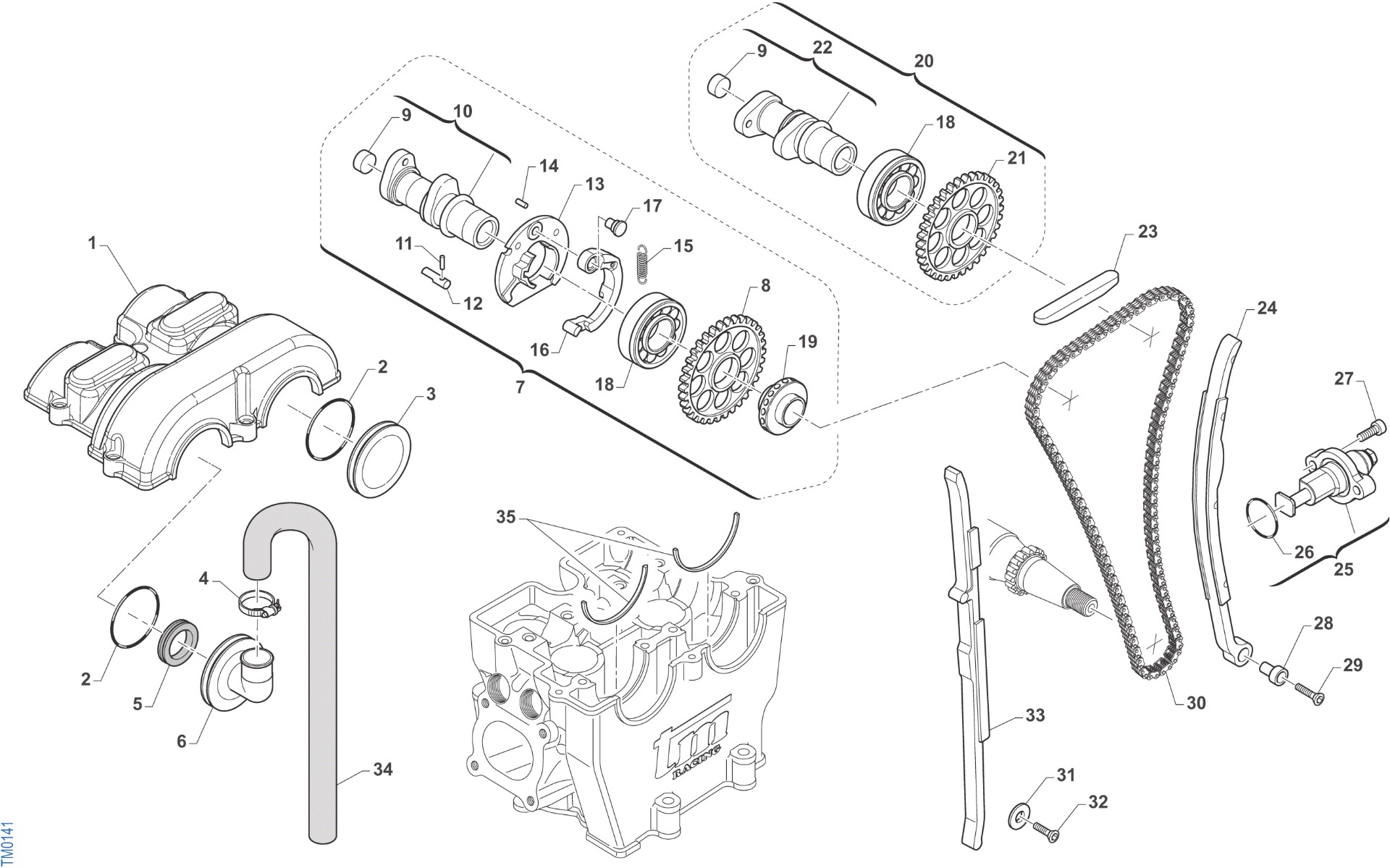

| No. | Tuotekoodi | Nimi | Tarv. määrä | Huom. | Hinta | Määrä | Osta |
|---|---|---|---|---|---|---|---|
| 1. | F30790 | Cylinder head cover f.s.m.04-> | 1 | 171,06 € | |||
| 2. | F12307 | O-ring, 3156 cammes cover f.s. | 2 | 2,50 € | |||
| 3. | F30832 | Coperchietto a cammes 04 | 1 | 38,66 € | |||
| 4. | 51073 | Clamp 10 / 19 mm | 1 | 3,74 € | |||
| 5. | F04361 | Oil seal 20x30x5 | 1 | 6,37 € | |||
| 6. | F30868 | Coperchietto camme x sf.a cent | 1 | 62,10 € | |||
| 7. | F28630 | Albero camme sca cpl n3 | 1 | 451,76 € | |||
| 8. | F40883 | Gear, exhaust camshaft 4s | 1 | 49,14 € | |||
| 9. | F26377 | Tappo albero a camme 4t | 2 | 3,85 € | |||
| 11. | F19505 | Needle roller 2,5 x 13,8 | 1 | 2,50 € | |||
| 12. | F26345 | Rotary cam | 1 | 8,84 € | |||
| 13. | F26343 | Flange centrifugal decompres. | 1 | 25,07 € | |||
| 14. | F19504 | Pin d.4 x 8 | 1 | 2,50 € | |||
| 15. | F16410 | Spring, automatic decompr. cam | 1 | 2,50 € | |||
| 16. | F26344 | Lever, centrifugal decompr. | 1 | 17,30 € | |||
| 17. | F26346 | Pin for lever | 1 | 2,50 € | |||
| 18. | F03353 | Bush 60/22 nc camshaft | 2 | 16,13 € | |||
| 19. | F32523 | Centrifugatore x sf.olio.centr | 1 | 31,66 € | |||
| 20. | F28610 | Inlet camsh.assy450/530e/smr06 | 1 | 462,98 € | |||
| 21. | F40882 | Gear, inlet camshaft 4s | 1 | 49,14 € | |||
| 23. | F70309 | Guide, top, head cover | 1 | 7,34 € | |||
| 24. | F70339 | Guide, cam chain, adj, large | 1 | 89,15 € | |||
| 25. | F70354 | Timing tensioner | 1 | 139,78 € | |||
| 26. | 12012 | O ring chain tensioner 4s | 1 | 2,50 € | |||
| 27. | 49484 | Screw tcei 6 x 20 | 2 | 2,50 € | |||
| 28. | F49826 | Screw | 1 | 6,06 € | |||
| 29. | 49407 | Bolt tsei 6x25 | 1 | 2,50 € | |||
| 30. | F70356 | Cam chain, 124p 450 | 1 | 164,02 € | |||
| 31. | 49603 | Washer 6 x 12 | 1 | 2,50 € | |||
| 32. | 49399 | Screw tsei 5 x 12 | 1 | 2,50 € | |||
| 33. | F70338 | Guide, cam chain, fixed, large | 1 | 36,67 € | |||
| 34. | F65104 | Hose copolan grey 11x16mm | 1 | 10,45 € | |||
| 35. | F26317 | Retainer, cam bearing | 2 | 2,50 € |
