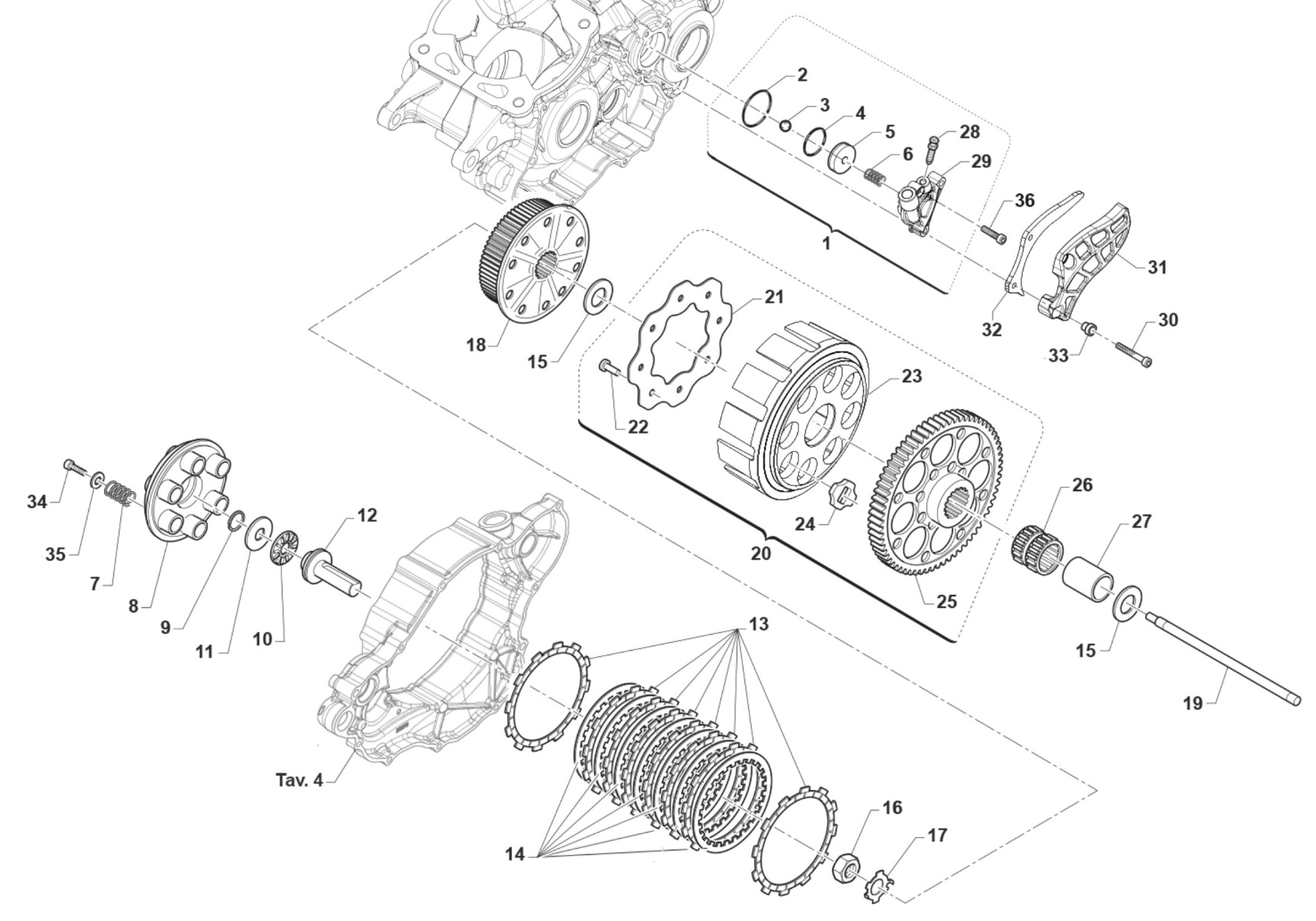

Clutch 5 Gears
Vie hiiri kuvan päälle nähdäksesi kuvan suurempana. Suurennustasoa voi vaihtaa hiiren rullalla. Klikkaa kuvaa avataksesi sen uuteen välilehteen.
| No. | Tuotekoodi | Nimi | Tarv. määrä | Huom. | Hinta | Määrä | Osta |
|---|---|---|---|---|---|---|---|
| 1. | 30265.19 | Cover idr.clutch 250/300 t.s. es my19-> assy | 1 | 77,22 € | |||
| 2. | 12091 | O-ring | 1 | 2,50 € | |||
| 3. | F19517 | Ball idr. clutch piston 250n | 1 | 2,50 € | |||
| 4. | 12268 | O-ring clutch piston 250/300 ts m.19-> | 1 | 2,50 € | |||
| 5. | F35559 | Piston | 1 | 32,28 € | |||
| 6. | F16444.4 | Spring, compression 12/13 n/m | 1 | 2,50 € | |||
| 7. | F16453 | Spring, clutch 2/4t 250/450 | 6 | 4,41 € | |||
| 8. | 25253 | Plate, clutch pressure | 1 | 86,25 € | |||
| 9. | 09006 | Clip | 1 | 2,50 € | |||
| 10. | 19022 | Needle sage radial | 1 | 9,98 € | |||
| 11. | 19023 | Washer 1528 | 1 | 3,85 € | |||
| 12. | F35582 | Piece, clutch lifter | 1 | 13,21 € | |||
| 13. | F35533 | Clutch plate,fiber 2,80mmadler | 8 | 9 999,00 € | |||
| 14. | 35250 | Clutch plate, steel 1,8mm 250 | 7 | 8,79 € | |||
| 15. | 48250 | Spacer 22 x 39 x 2 | 2 | 2,50 € | |||
| 16. | 49060 | Nut, clutch center | 1 | 2,50 € | |||
| 17. | 35050 | Washer | 1 | 2,50 € | |||
| 18. | 25255 | Central hub | 1 | 132,12 € | |||
| 19. | 35503 | Rod, clutch | 1 | 13,62 € | |||
| 20. | 40245.19 | Primary gear assy | 1 | 526,88 € | |||
| 21. | 35262.1 | 49727 | 1 | 9 999,00 € | |||
| 22. | 49727 | Screw, m7x1x12,5 k9 engine | 8 | 2,50 € | |||
| 23. | 25254 | Clutch basket 250/300 my 19-> | 1 | 81,57 € | |||
| 24. | 21005 | Rubber damber | 8 | 2,50 € | |||
| 25. | 40242 | Gear, primary 57 t | 1 | 531,98 € | |||
| 26. | F19510 | Roller cage 27 x 32 x 23,8 | 1 | 19,34 € | |||
| 27. | F26422 | Transmission input bush | 1 | 28,30 € | |||
| 28. | 35264 | Slide stop | 1 | 7,98 € | |||
| 29. | 30269 | Cover idr. clutch 2s 250/300 my19-> | 1 | 42,37 € | |||
| 30. | 49535 | Screw tcei 5 x 35 | 2 | 2,50 € | |||
| 31. | 40075 | Protection, plastic | 1 | 8,84 € | |||
| 32. | 40042 | Protection, ergal | 1 | 14,24 € | |||
| 33. | 26211 | Collar | 2 | 3,85 € | |||
| 34. | 49484 | Screw tcei 6 x 20 | 6 | 2,50 € | |||
| 35. | 49604 | Washer 6 x 18 | 6 | 2,50 € | |||
| 36. | 49474 | Screw tcei 5 x 16 | 1 | 2,50 € |
