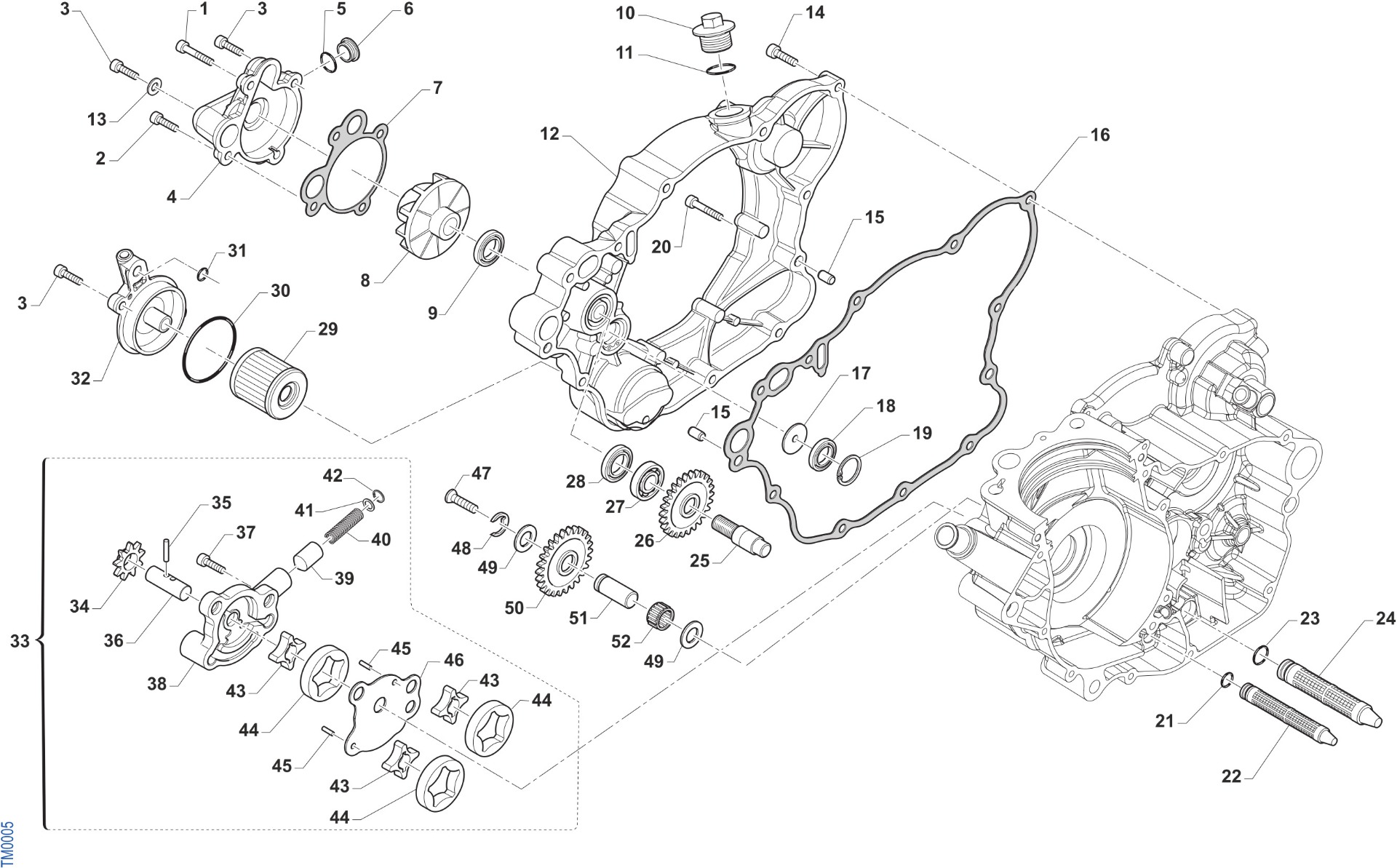

Lubrication
Vie hiiri kuvan päälle nähdäksesi kuvan suurempana. Suurennustasoa voi vaihtaa hiiren rullalla. Klikkaa kuvaa avataksesi sen uuteen välilehteen.
| No. | Tuotekoodi | Nimi | Tarv. määrä | Huom. | Hinta | Määrä | Osta |
|---|---|---|---|---|---|---|---|
| 1. | 49575 | Screw tcei 5x45 | 1 | 2,50 € | |||
| 2. | 49570 | Screw tcei 5x50 | 1 | 2,50 € | |||
| 3. | 49476 | Screw tcei 5 x 20 | 3 | 2,50 € | |||
| 4. | F30966 | Output cylinder | 1 | 99,07 € | |||
| 5. | F12327 | O-ring | 1 | 2,50 € | |||
| 6. | F49841 | Plug | 1 | 10,98 € | |||
| 7. | F05833 | Gasket | 1 | 4,41 € | |||
| 8. | F28679 | Oil pump endorsed | 1 | 26,02 € | |||
| 9. | 04017 | Oil seal | 1 | 7,93 € | |||
| 10. | F49925 | Plug, oil | 1 | 19,59 € | |||
| 11. | F49920 | Washer aluminium. 20,4 x 26 x 1,5 | 1 | 2,50 € | |||
| 12. | F30961 | Transmission cover | 1 | 192,99 € | |||
| 13. | 49119 | Washer, 5 x 9 x 1.5 alluminium | 1 | 2,50 € | |||
| 14. | 49477 | Screw tcei 5 x 25 | 7 | 2,50 € | |||
| 15. | 26041 | Alingnment grain 7 x 8 f 5.2 | 2 | 2,50 € | |||
| 16. | F05828 | Transmission cover | 1 | 17,20 € | |||
| 17. | F32529 | Disk | 1 | 5,51 € | |||
| 18. | F04390 | Oil seal faj 14-22-5 hs | 1 | 10,20 € | |||
| 19. | F49913 | Circlip i 23 | 1 | 2,50 € | |||
| 20. | 49478 | Screw tcei 5 x 30 | 1 | 2,50 € | |||
| 21. | F12325 | O-ring | 1 | 2,50 € | |||
| 22. | F32532 | Oil filter | 1 | 7,01 € | |||
| 23. | F12343 | O-ring | 1 | 2,50 € | |||
| 24. | F32555 | Filter oil inlet | 1 | 10,96 € | |||
| 25. | F28658 | Pump shaft | 1 | 29,68 € | |||
| 26. | F40112 | Ingranaggio cond.p.acqua z 21 300 4t | 1 | 34,31 € | |||
| 27. | F03365 | Bearing | 1 | 19,01 € | |||
| 28. | F04363 | Oil seal 8 x 22 x 5 | 1 | 7,96 € | |||
| 29. | F66510 | Oil filter | 1 | 14,47 € | |||
| 30. | 12094 | O-ring | 1 | 2,50 € | |||
| 31. | F12302 | O-ring 108 | 1 | 2,50 € | |||
| 32. | F30965 | Cover, oil filter | 1 | 62,86 € | |||
| 33. | F30068 | Oil pump assy | 1 | 321,21 € | |||
| 34. | F40997 | Gear, oil pump 250fi 9 t | 1 | 66,69 € | |||
| 35. | F19513 | Roller 2.5 x 11.8 | 3 | 2,50 € | |||
| 36. | F28840 | Shaft, oil pump | 1 | 9 999,00 € | |||
| 37. | 49751 | Screw tcei 5 x 22 | 2 | 2,50 € | |||
| 38. | F30059 | Oil pump body | 1 | 9 999,00 € | |||
| 39. | F32533 | Piston, oil pressure valve | 1 | 6,32 € | |||
| 40. | F16441 | Spring, piston | 1 | 5,51 € | |||
| 41. | 49600 | Washer 4 | 1 | 3,00 € | |||
| 42. | 49267 | Snap ring | 1 | 2,50 € | |||
| 43. | F32577 | Rotor, oil pump, internal | 3 | 32,28 € | |||
| 44. | F32578 | Rotor, oil pump, external | 3 | 32,28 € | |||
| 45. | F19521 | Pin 3 x 11 | 2 | 9 999,00 € | |||
| 46. | F32574 | Plate | 1 | 9 999,00 € | |||
| 47. | 49429 | Screw tsei 4 x 35 | 1 | 2,50 € | |||
| 48. | F49821 | Snap ring | 1 | 14,69 € | |||
| 49. | F19512 | Fifth wheel coupling as 08211 | 2 | 2,50 € | |||
| 50. | F40909 | Oil pump netral gear z 25 | 1 | 54,31 € | |||
| 51. | F28665 | Neutral gear shart | 1 | 20,78 € | |||
| 52. | F19511 | Roller cage 8 x 11 x 8 | 1 | 12,98 € |
