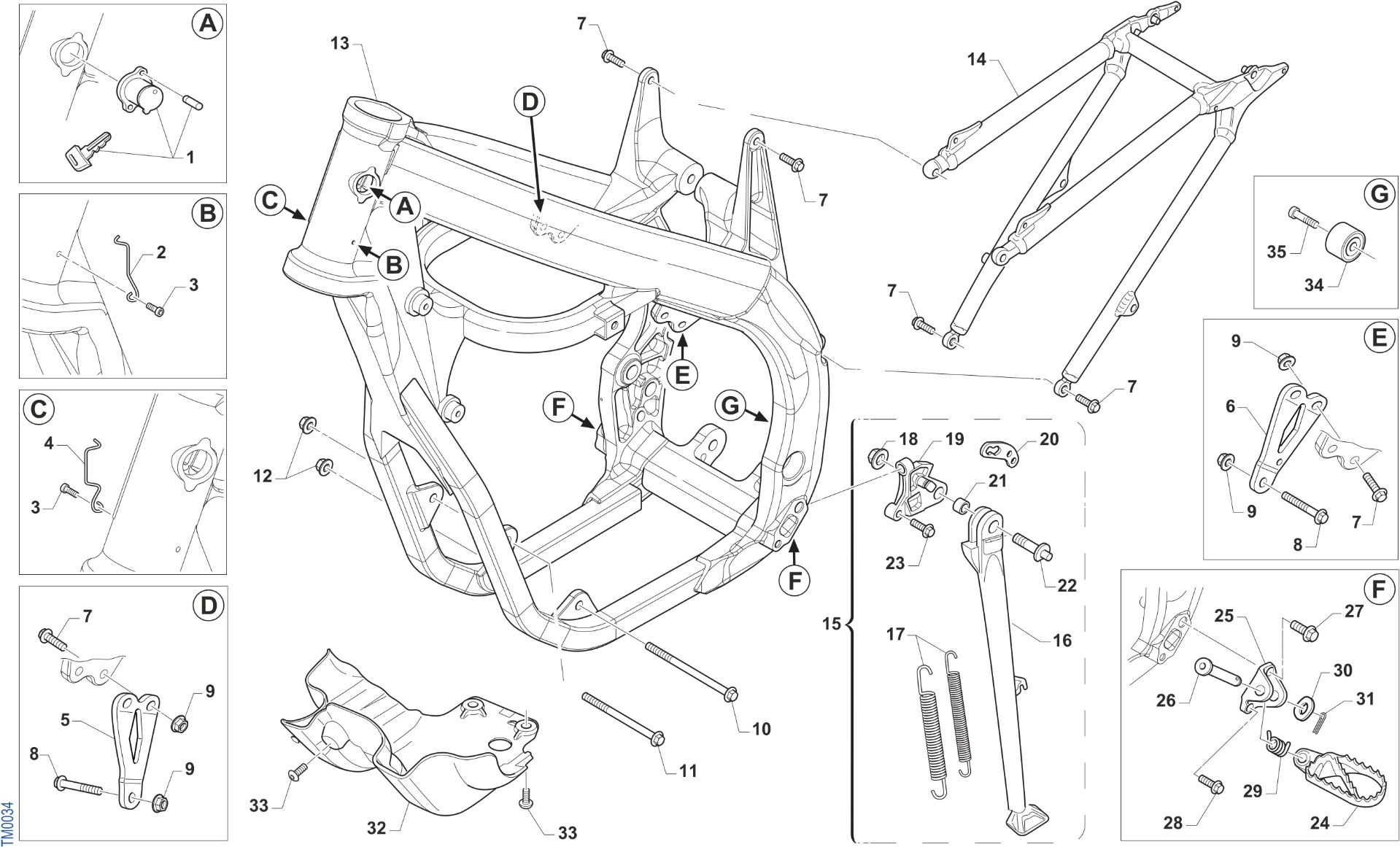

Frame
Vie hiiri kuvan päälle nähdäksesi kuvan suurempana. Suurennustasoa voi vaihtaa hiiren rullalla. Klikkaa kuvaa avataksesi sen uuteen välilehteen.
| No. | Tuotekoodi | Nimi | Tarv. määrä | Huom. | Hinta | Määrä | Osta |
|---|---|---|---|---|---|---|---|
| 1. | 50512 | Steering lock m.08-> assy | 1 | 40,51 € | |||
| 2. | 16021 | Grommet bikes lf | 1 | 9,43 € | |||
| 3. | 49597 | Bolt tbce 4 x 8 | 2 | 2,50 € | |||
| 4. | 16023 | Spring, cables | 1 | 3,85 € | |||
| 5. | F26690 | Plate, rh 4s twin | 1 | 13,76 € | |||
| 6. | F26691 | Plate, lh 4s twin | 1 | 13,76 € | |||
| 7. | 49364 | Bolt, eh 8x25 to.10 mm | 8 | 2,50 € | |||
| 8. | 49366 | Bolt 8x40 t.10mm | 2 | 3,15 € | |||
| 9. | 49680 | Nut, m 8x1,25 flang. sb | 6 | 2,50 € | |||
| 10. | 49352 | Bolt special 10x125 1.25 t.13 | 1 | 3,85 € | |||
| 11. | 49351 | Bolt special 10x120 1.25 t.10 | 1 | 2,50 € | |||
| 12. | F49962 | Nut | 2 | 2,50 € | |||
| 13. | F73503 | Frame 250 en 19 twin | 1 | 9 999,00 € | |||
| 14. | F73466 | Rear sub-frame 4s smx my 15/-> | 1 | 355,87 € | |||
| 15. | F73451 | Stand, side, assy 08/-> | 1 | 128,50 € | |||
| 16. | F73438 | Side stand end. m.08-> | 1 | 86,68 € | |||
| 17. | 16034.08 | Spring, stand 08/-> | 1 | 16,24 € | |||
| 18. | 49656 | Nut, flanged m10 ch.14 1,5 | 1 | 2,50 € | |||
| 19. | F73439 | Holder side stand end. m.08-> | 1 | 52,95 € | |||
| 20. | F73450 | Bracket, side stand spring 08 | 1 | 8,47 € | |||
| 21. | F26429 | Bush, side stand mod. 08/-> | 1 | 5,51 € | |||
| 22. | F49819 | Bolt, side stand 08/-> | 1 | 7,11 € | |||
| 23. | 49501 | Bolt tcei 8x25 | 2 | 2,50 € | |||
| 24. | 73048.10 | Footpeg, right m.10-> | 1 | 54,99 € | |||
| 24. | 73049.10 | Footpeg, left m.10-> | 1 | 54,99 € | |||
| 25. | 00692 | Holder, footpegs, m. 08/-> | 2 | 14,03 € | |||
| 26. | 73064 | Pin, foot peg, 08/-> | 2 | 10,17 € | |||
| 27. | 49382 | Bolt 12 x 25 flange | 2 | 2,50 € | |||
| 28. | 49383 | Bolt 8 x 20 flange | 2 | 2,50 € | |||
| 29. | 16022 | Spring, foot peg pin 08/-> | 2 | 4,41 € | |||
| 30. | 49612 | Steel washer 10 | 2 | 2,50 € | |||
| 31. | 73036 | Cotter pin footpeg 92/01 | 2 | 2,50 € | |||
| 32. | F50826 | Guard engine 250fi mx/en 2011 | 1 | 36,26 € | |||
| 33. | F49861 | Bolt, guard engine 6x16 | 4 | 2,50 € | |||
| 34. | 67088.08 | Chain roller 08/-> | 1 | 16,85 € | |||
| 35. | 49725 | Bolt chei 8x25 upper chain rol | 1 | 2,50 € |
