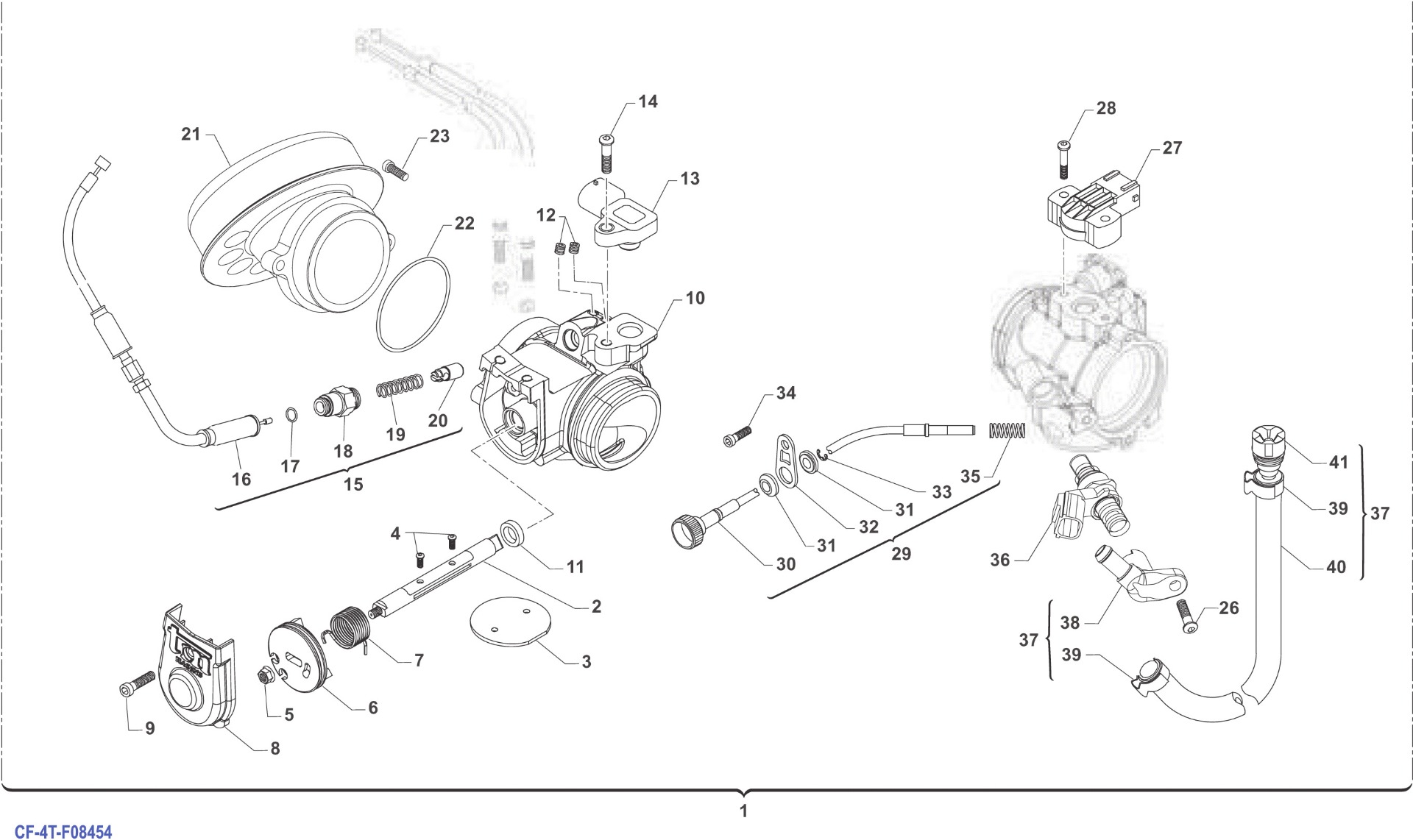

Throttle Body
Vie hiiri kuvan päälle nähdäksesi kuvan suurempana. Suurennustasoa voi vaihtaa hiiren rullalla. Klikkaa kuvaa avataksesi sen uuteen välilehteen.
| No. | Tuotekoodi | Nimi | Tarv. määrä | Huom. | Hinta | Määrä | Osta |
|---|---|---|---|---|---|---|---|
| 1. | F08454 | Corpo farfallato 450 en/mx/smr cpl my20 keihin | 1 | 1 431,84 € | |||
| 2. | F08055 | Throttle shaft | 1 | 142,86 € | |||
| 3. | F08080 | Throttle for unit f08050 | 1 | 50,23 € | |||
| 4. | 49728 | Bolt | 2 | 3,00 € | |||
| 5. | 49701 | Nut 5mm, flanged valv. | 2 | 2,50 € | |||
| 6. | F08088 | Gas control pulley | 1 | 127,50 € | |||
| 7. | F08078 | Throttle returning spring | 1 | 5,51 € | |||
| 8. | F08051 | Cables compartment cover | 1 | 5,51 € | |||
| 9. | 49596 | Screw tcei m4 x 20 | 1 | 2,50 € | |||
| 10. | F08440 | Corpo farfallato nudo 450 mx-end inj. keihin | 1 | 9 999,00 € | |||
| 11. | F04368 | Oil seal 10 x 14 x 3 | 1 | 7,70 € | |||
| 13. | F08072 | Pressure sensor | 3 | 69,91 € | |||
| 14. | 49754 | Bolt tbcix 5x20 | 1 | 3,00 € | |||
| 15. | F64327 | Cavo commando starter cpl. | 1 | 27,59 € | |||
| 16. | F64326 | Cavo commando starter | 1 | 15,17 € | |||
| 17. | 12060 | O-ring commando starter | 1 | 2,50 € | |||
| 18. | F08090 | Starter control unit | 1 | 5,51 € | |||
| 19. | F16451 | Spring for starter control | 1 | 5,51 € | |||
| 20. | F08089 | Piston starter control | 1 | 6,15 € | |||
| 21. | F08237 | Trombetta per corpo f. f08241 | 1 | 85,80 € | |||
| 22. | 12005 | O-ring | 1 | 2,50 € | |||
| 23. | 49929 | Bolt | 2 | 2,50 € | |||
| 26. | 49753 | Vite 10.9 tbcei 5 x 16 uni 7380 | 1 | 3,00 € | |||
| 27. | F08052 | Potentiometer | 1 | 158,26 € | |||
| 28. | 49928 | Bolt | 2 | 3,00 € | |||
| 29. | F64331 | Flex cable minimum registration cpl. | 1 | 27,17 € | |||
| 30. | F64328 | Flex cable minimum registration | 2 | 16,32 € | |||
| 32. | F64329 | Support plate for minimum registration flex cable | 1 | 9 999,00 € | |||
| 33. | F49938 | Snap ring for minimum registration flex cable | 1 | 2,50 € | |||
| 34. | 49470 | Bolt tcei 4x12 | 1 | 2,50 € | |||
| 35. | F16452 | Contrast spring inimum registration flex cable | 1 | 3,15 € | |||
| 36. | F08322 | Injector n5j 445cc w/out d. | 1 | 127,74 € | |||
| 37. | F08293.20 | Tubazione carb. fi cpl 450/530 my20 | 1 | 9 999,00 € | |||
| 38. | F08442 | Supporto iniettore keihin c.f. 450 mx-end | 1 | 9 999,00 € | |||
| 39. | F51110 | Clamps | 2 | 2,50 € | |||
| 40. | 67036 | Hose, oil/fuel 8x14 | 1 | 12,17 € | |||
| 41. | F08087 | Joint jg sl3-2005-a | 1 | 16,27 € |
