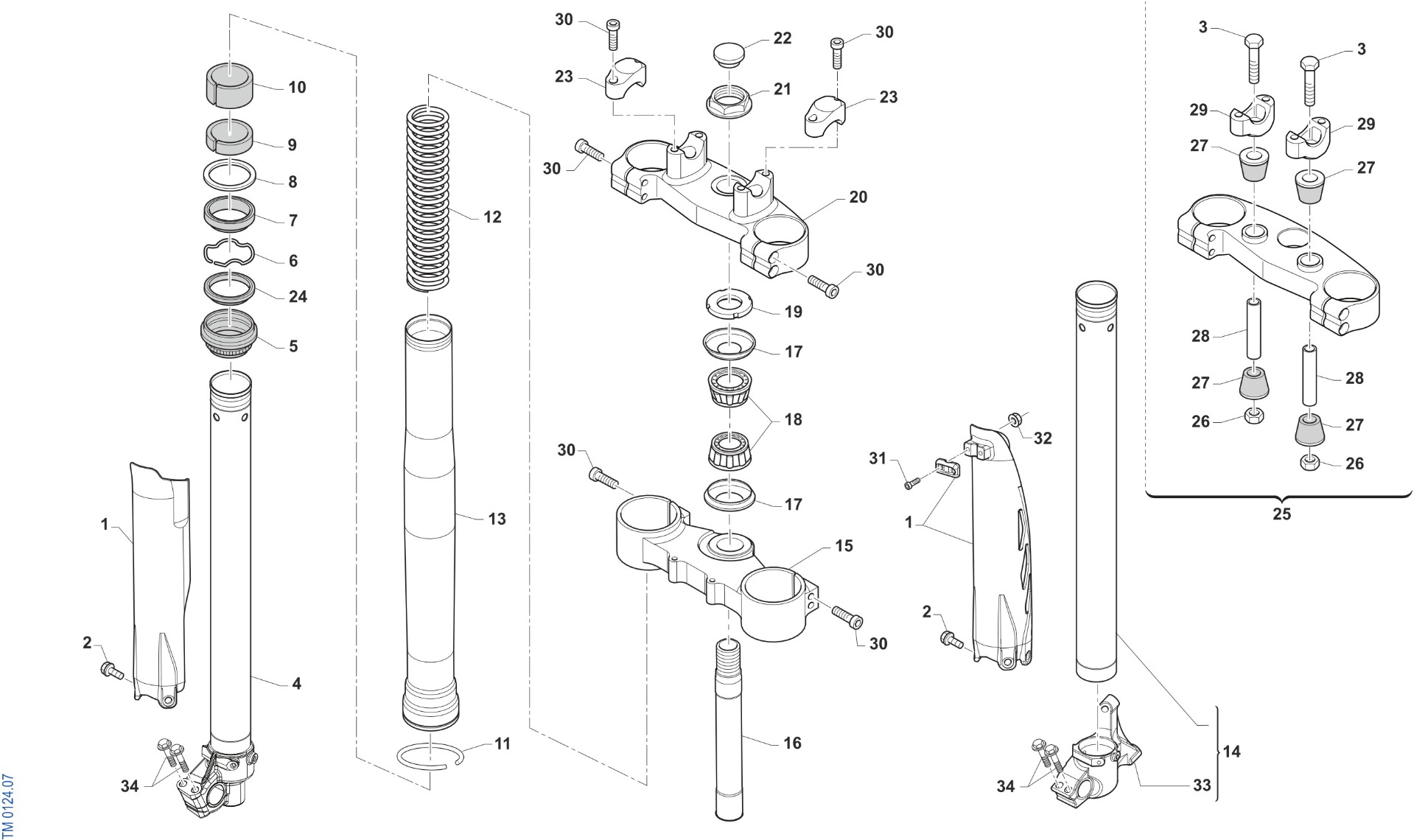

08 Front Fork
Vie hiiri kuvan päälle nähdäksesi kuvan suurempana. Suurennustasoa voi vaihtaa hiiren rullalla. Klikkaa kuvaa avataksesi sen uuteen välilehteen.
| No. | Tuotekoodi | Nimi | Tarv. määrä | Huom. | Hinta | Määrä | Osta |
|---|---|---|---|---|---|---|---|
| 1. | 67494 | Protez.kit forc.usd smr/smk quantum 2025 | 1 | 9 999,00 € | |||
| 2. | 49571 | Bolt tbce 6x7 | 6 | 2,50 € | |||
| 3. | 49582 | Screw eh 10x65 | 2 | 2,50 € | |||
| 4. | 72568 | Inner tube comp right | 1 | 527,53 € | |||
| 5. | 72502 | Dust seal kyb fork 48 mm | 2 | 26,18 € | |||
| 6. | 72525 | Snap ring oil seal kyb 48 mm | 2 | 5,51 € | |||
| 7. | 72501 | Oil seal kyb fork 48 mm | 2 | 27,22 € | |||
| 8. | 72526 | Washer next to oil seal kyb 48 | 2 | 14,46 € | |||
| 9. | 72504 | Slide metal kyb 48 | 2 | 25,12 € | |||
| 10. | 72503 | Piston metal kyb 48 | 2 | 27,22 € | |||
| 11. | 72530 | Snap ring outertube kyb 48 mm | 2 | 6,06 € | |||
| 12. | F72445 | Spring, forks kyb 48 k=4.0 | 2 | 130,79 € | |||
| 12. | F72446 | Spring, forks kyb 48 k=4.2 | 2 | 130,79 € | |||
| 12. | F72447 | Spring, kyb fork k 4.3 | 2 | 130,79 € | |||
| 12. | F72448 | Spring, forks kyb 48 k=4.4 | 2 | 130,79 € | |||
| 12. | F72449 | Spring, forks kyb 48 k=4.6 | 2 | 130,79 € | |||
| 13. | 72567.1 | Outer tube comp, gold | 2 | 577,82 € | |||
| 14. | 72569.1 | Inner tube assy lh, kyb 48 smr | 1 | 638,11 € | |||
| 15. | 72000.101 | Piastra inf. kyb 48,22 | 1 | 9 999,00 € | |||
| 16. | 72031 | Steering stem, end. m.98/-> | 1 | 50,42 € | |||
| 17. | 72002.02 | Dust seal, steering stem 02/-> | 2 | 10,74 € | |||
| 18. | 03070 | Bush, steering m. 02/-> | 2 | 47,42 € | |||
| 19. | 72008.98 | Nut, steering bearing | 1 | 8,79 € | |||
| 20. | 72000.100 | Piastra sup. kyb 48,22 | 1 | 9 999,00 € | |||
| 21. | 49080 | Nut, steering stem alum 98/-> | 1 | 15,55 € | |||
| 22. | 21033 | Plastic cap d.25mm steer. axe | 1 | 2,50 € | |||
| 23. | 72036.11 | Upper handlebar m.11 silver | 2 | 22,43 € | |||
| 24. | 72341 | Scraper | 2 | 13,60 € | |||
| 25. | 72000.109 | Piastra sup. kyb 48,22 sb cpl | 1 | 9 999,00 € | |||
| 26. | 49646 | Nut, m10 low self-locking | 2 | 2,50 € | |||
| 27. | 21036 | Rubber, handlebar 05/-> | 4 | 3,85 € | |||
| 28. | 26106 | Bush, rubber, triple clamp | 2 | 6,12 € | |||
| 29. | 72037.11 | Lower handlebar, cnc s.b. m11 | 2 | 34,07 € | |||
| 30. | 49502 | Bolt tcei 8x30 | 8 | 2,50 € | |||
| 31. | 49474 | Screw tcei 5 x 16 | 2 | 2,50 € | |||
| 32. | 49629 | Nut 5mm, hight self-locking | 2 | 2,50 € | |||
| 33. | F72490 | Foot lh smr kyb48 (w/b 100) | 1 | 384,66 € | |||
| 34. | 72622 | Vite piedino forcella kyb | 4 | 9 999,00 € |
