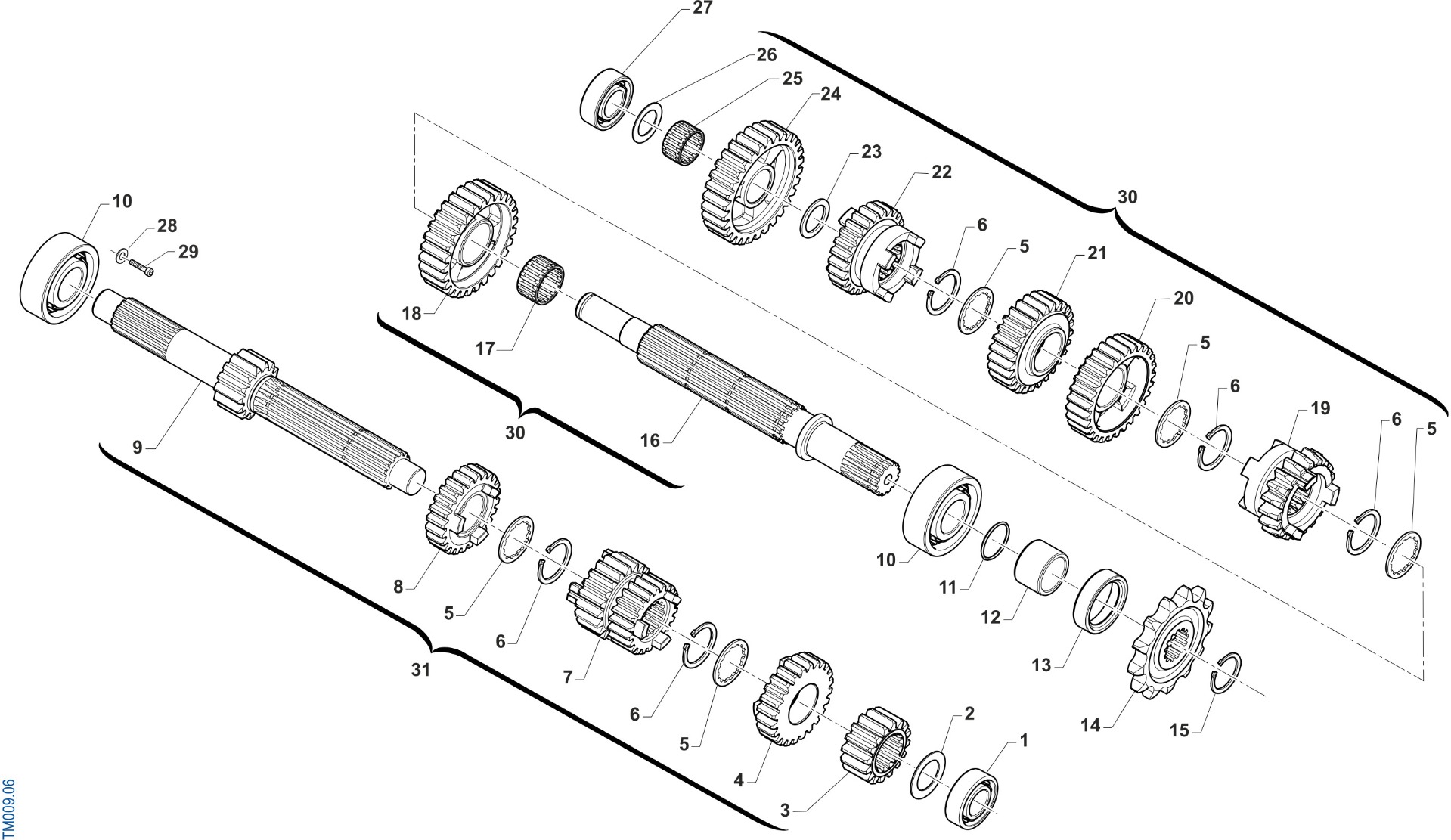

Gearbox
Vie hiiri kuvan päälle nähdäksesi kuvan suurempana. Suurennustasoa voi vaihtaa hiiren rullalla. Klikkaa kuvaa avataksesi sen uuteen välilehteen.
| No. | Tuotekoodi | Nimi | Tarv. määrä | Huom. | Hinta | Määrä | Osta |
|---|---|---|---|---|---|---|---|
| 1. | 03254 | Bush, mainshaft 2rs/c3 4s | 1 | 19,26 € | |||
| 2. | 48253 | Fifth wheel coupling | 1 | 2,50 € | |||
| 3. | F40894 | Gear 2nd a.p. z 16 | 1 | 67,37 € | |||
| 4. | F40898 | Gear, 6th (only 6 gears speed) | 1 | 112,36 € | |||
| 5. | F40896 | Broaded fifth wheel coupling z 14 | 5 | 2,50 € | |||
| 6. | F49838 | Snap ring | 5 | 2,50 € | |||
| 7. | F40895 | Gear 3rf-4th a.p. z 20 / z 22 | 1 | 166,10 € | |||
| 8. | F40897 | Gear 5th a.p. z 24 | 1 | 90,46 € | |||
| 9. | F40893 | Main shaft 14 t | 1 | 210,64 € | |||
| 10. | F03368 | Bearing 22 x 50 x 14 (62/22 c3) | 2 | 24,76 € | |||
| 11. | F12320 | O-ring | 1 | 2,50 € | |||
| 12. | F26421 | Chain sprocket spacer | 1 | 16,51 € | |||
| 13. | 04113 | Oil seal 28 x 38 x 7 | 1 | 7,60 € | |||
| 14. | F40889 | Sprocket drive 13t | 1 | 51,26 € | |||
| 14. | F40933 | Scrocket drive 14t | 1 | 51,26 € | |||
| 14. | F40956 | Sprocket drive 12t | 1 | 51,26 € | |||
| 15. | 49217 | Snap ring | 1 | 2,50 € | |||
| 16. | F40899 | Secondary shaft | 1 | 145,41 € | |||
| 17. | F19524 | Needle bearing 22 x 26 x 10 | 1 | 12,88 € | |||
| 18. | F40901 | Gear 2nd a.s. z 28 | 1 | 114,82 € | |||
| 19. | F40905 | Gear, 6th (only 6 gears speed) | 1 | 143,34 € | |||
| 20. | F40902 | Gear 3rd a.s. z 29 | 1 | 139,82 € | |||
| 21. | F40903 | Gear 4th a.s. z 27 | 1 | 106,41 € | |||
| 22. | F40904 | Gear 5th a.s. z 25 | 1 | 116,30 € | |||
| 23. | F48353 | Ps thickness 18 x 25 x 1 | 1 | 2,50 € | |||
| 24. | F40900 | Gear 1st a.s. z 30 | 1 | 106,22 € | |||
| 25. | F19514 | Roller cage 18 x 22 x 10 | 1 | 12,88 € | |||
| 26. | 48012 | Shim 17 x 26 x 0.5 | 1 | 2,50 € | |||
| 27. | F03367 | Bush(17 x 35 x 10) | 1 | 9,23 € | |||
| 28. | 49603 | Washer 6 x 12 | 1 | 2,50 € | |||
| 29. | 49480 | Bolt tcei 6x10 | 1 | 2,50 € | |||
| 30. | F40888 | Secondary shaft assy 6 gears | 1 | 870,86 € | |||
| 31. | F40887 | Primary shaft assy 6 gears | 1 | 653,13 € |
