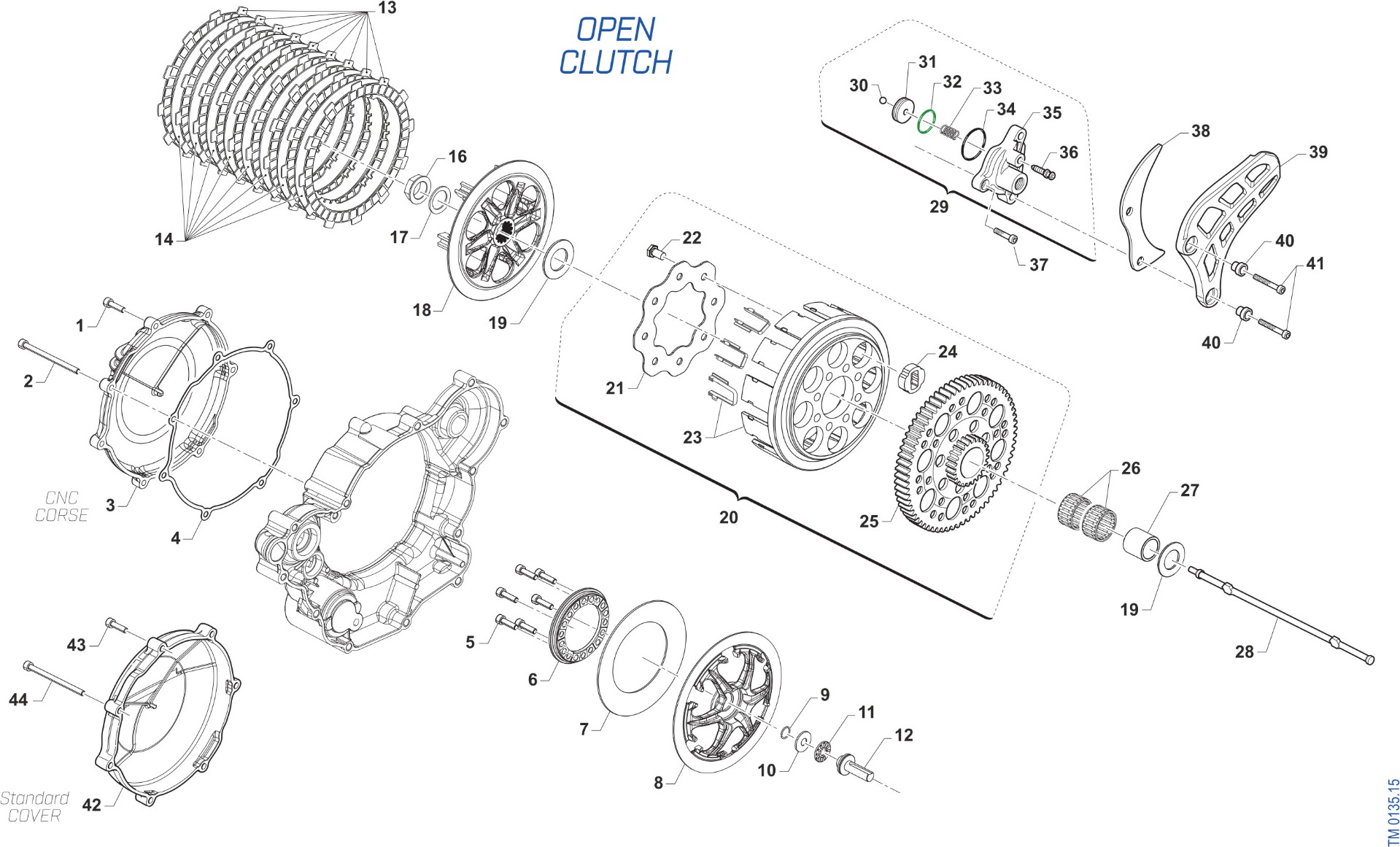

65 Open Clutch
Vie hiiri kuvan päälle nähdäksesi kuvan suurempana. Suurennustasoa voi vaihtaa hiiren rullalla. Klikkaa kuvaa avataksesi sen uuteen välilehteen.
| No. | Tuotekoodi | Nimi | Tarv. määrä | Huom. | Hinta | Määrä | Osta |
|---|---|---|---|---|---|---|---|
| 1. | 49475 | Bolt tcei 5x18 | 6 | 2,50 € | |||
| 2. | 49736 | Screw tcei 5x65 | 1 | 2,50 € | |||
| 4. | F05820 | Gasket, clutch cover ext 04/-> | 1 | 5,62 € | |||
| 5. | 49476 | Screw tcei 5 x 20 | 6 | 2,50 € | |||
| 6. | 25019 | Elemento fissaggio molla | 1 | 9 999,00 € | |||
| 7. | 16082 | Molla frizione 114,8x71x1,55x4,60 | 1 | 9 999,00 € | |||
| 8. | 25022 | Spingidisco frizione f2xxn f3xxn | 1 | 9 999,00 € | |||
| 9. | 09006 | Clip | 1 | 2,50 € | |||
| 10. | 19023 | Washer 1528 | 1 | 3,85 € | |||
| 11. | 19022 | Needle sage radial | 1 | 9,98 € | |||
| 12. | F35582 | Piece, clutch lifter | 1 | 13,21 € | |||
| 13. | 35081 | Disco frizione conduttore d.138.4 - d.116.6 - s.2 | 9 | 9 999,00 € | |||
| 14. | 35079 | Dado 27.5 - m18 x 1,25 | 8 | 9 999,00 € | |||
| 17. | 490059 | Rondella schnorr din9250 - m18/19x27x1.5 | 1 | 9 999,00 € | |||
| 18. | 25026 | Tamburello frizione f2bbn | 1 | 9 999,00 € | |||
| 19. | 48250 | Spacer 22 x 39 x 2 | 2 | 2,50 € | |||
| 20. | 40576 | Coppia primaria cpl 4t 450 z 57 (open clutch f2) | 1 | 9 999,00 € | |||
| 21. | 35262 | Plate clutch basket | 1 | 6,77 € | |||
| 22. | 49727 | Screw, m7x1x12,5 k9 engine | 8 | 2,50 € | |||
| 23. | 25018 | Clutch basket 4s 450, open clutch f2 | 1 | 9 999,00 € | |||
| 24. | 21005 | Rubber damber | 8 | 2,50 € | |||
| 25. | 40249 | Primary gear 57t, 250 2t | 1 | 468,24 € | |||
| 26. | 19050 | Needle cage clutch 250cc | 2 | 14,24 € | |||
| 27. | 26252 | Spacer, needle cage clutch 250 | 1 | 17,55 € | |||
| 28. | 35083 | Rod, clutch, 4s 450 open clutch f2 | 1 | 9 999,00 € | |||
| 29. | F30029 | Cover idr. clutch 450/530 m.15 | 1 | 73,78 € | |||
| 30. | F19517 | Ball idr. clutch piston 250n | 1 | 2,50 € | |||
| 31. | F35554 | Piston clutch master cylinder | 1 | 58,41 € | |||
| 32. | 12259.1 | O ring 2087 (21,95x1,78) marrone | 1 | 9 999,00 € | |||
| 33. | F16470 | Molla contr. pist/fri 450fi15" | 1 | 5,51 € | |||
| 34. | 12252 | O-ring | 1 | 2,50 € | |||
| 35. | F30976 | Cover idr. clutch | 1 | 59,38 € | |||
| 36. | 35264 | Slide stop | 1 | 7,98 € | |||
| 37. | 49474 | Screw tcei 5 x 16 | 1 | 2,50 € | |||
| 38. | 40022 | Protection, gear chain ergal | 1 | 5,51 € | |||
| 39. | 40029 | Protection front sprocket09/13 | 1 | 12,10 € | |||
| 40. | 26211 | Collar | 2 | 3,85 € | |||
| 41. | 49535 | Screw tcei 5 x 35 | 2 | 2,50 € | |||
| 42. | F30791 | Clutch cover f.s. m.2004 | 1 | 94,07 € | |||
| 43. | 49476 | Screw tcei 5 x 20 | 6 | 2,50 € | |||
| 44. | 49576 | Bolt tcei 5x70 | 1 | 3,00 € |
