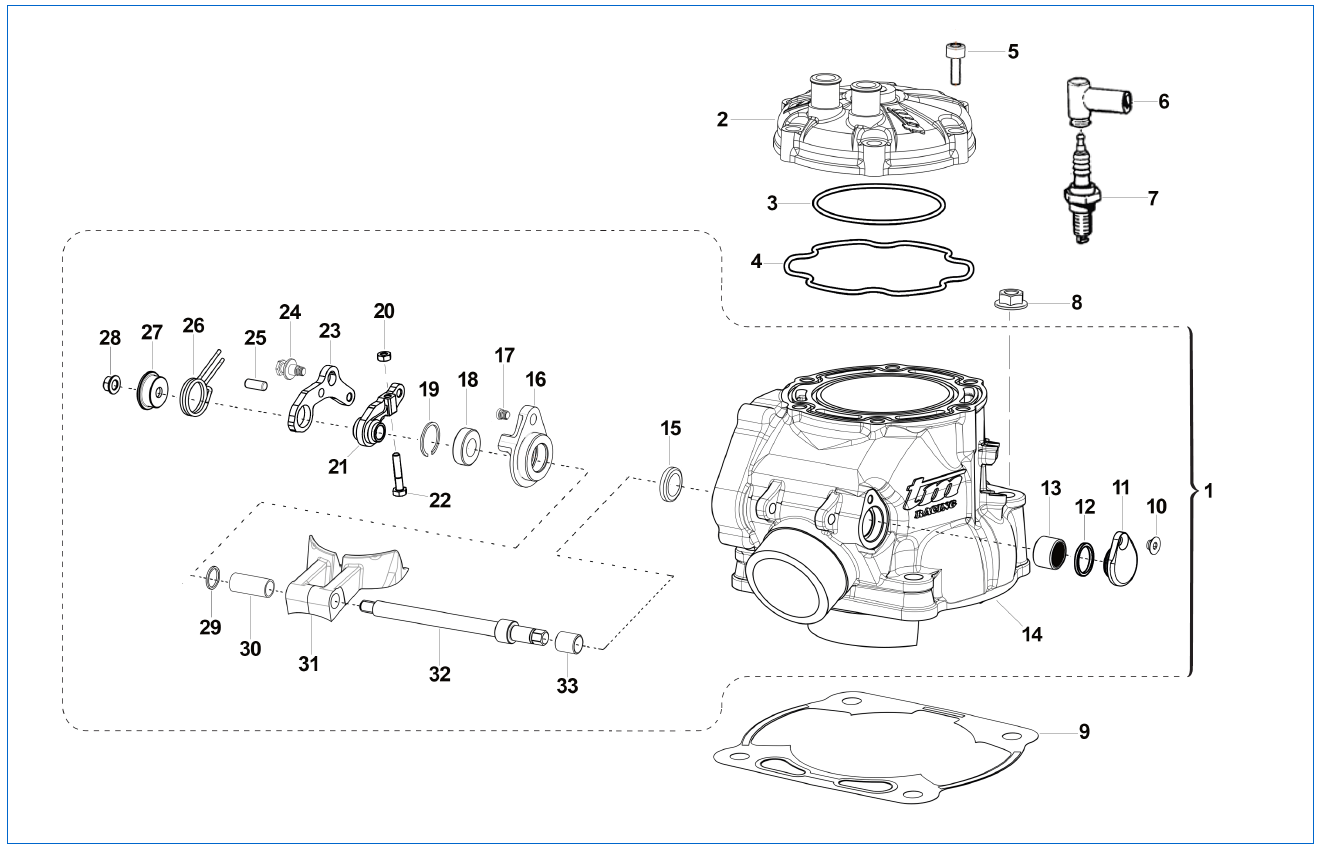

Cylinder
Vie hiiri kuvan päälle nähdäksesi kuvan suurempana. Suurennustasoa voi vaihtaa hiiren rullalla. Klikkaa kuvaa avataksesi sen uuteen välilehteen.
| No. | Tuotekoodi | Nimi | Tarv. määrä | Huom. | Hinta | Määrä | Osta |
|---|---|---|---|---|---|---|---|
| 1. | 01268 | Cylinder 300 mx/e t.s. (carb) m.19-> assy | 1 | 1 509,66 € | |||
| 2. | 02255.19 | Head 300 t.s. (carb) m.19-> | 1 | 9 999,00 € | |||
| 3. | 12262 | O-Ring, small | 1 | 2,50 € | |||
| 4. | 12263 | O-Ring, big | 1 | 2,50 € | |||
| 5. | 49503 | Screw | 8 | 2,50 € | |||
| 6. | 21017 | Cap, spark plug | 1 | 19,50 € | |||
| 7. | 06036 | Spark plug ngk bkr8eix | 1 | 30,35 € | |||
| 8. | F49874 | Nut, flanged m10 ch.14 1,5 | 4 | 2020 | 2,50 € | ||
| 9. | 05281.20 | Gasket, Cylinder 0,20 | 1 | 3,50 € | |||
| 9. | 05281.30 | Gasket, Cylinder 0,30 | - | 3,50 € | |||
| 9. | 05281.40 | Gasket, Cylinder 0,40 | - | 3,50 € | |||
| 9. | 05281.50 | Gasket, Cylinder 0,50 | - | 4,50 € | |||
| 10. | 49399 | Screw | 1 | 2,50 € | |||
| 11. | 30217 | Cap | 1 | 47,47 € | |||
| 12. | F12308 | O-ring | 1 | 2,50 € | |||
| 13. | 19044 | Bearing | 1 | 7,80 € | |||
| 14. | 01267 | Cylinder | 1 | 9 999,00 € | |||
| 15. | 04115 | Oil Seal | 1 | 7,04 € | |||
| 16. | 26258 | Flange, bearing | 1 | 9 999,00 € | |||
| 17. | 49757 | Bolt | 1 | 2,50 € | |||
| 18. | 03156 | Bearing | 1 | 24,44 € | |||
| 19. | 49220 | Circlip | 1 | 2,50 € | |||
| 20. | 49630 | Nut | 1 | 2,50 € | |||
| 21. | 28262 | /30l0e 2v0e1r9, internal | 1 | 9 999,00 € | |||
| 22. | 49738 | Bolt | 1 | 9 999,00 € | |||
| 23. | 28263 | Lever, external | 1 | 9 999,00 € | |||
| 24. | 26168 | Special bolt | 1 | 9 999,00 € | |||
| 25. | F19536 | Pin | 1 | 9 999,00 € | |||
| 26. | 16066 | Spring | 1 | 9 999,00 € | |||
| 27. | 26167 | Collar, spring | 1 | 9 999,00 € | |||
| POS.. | CODICE | Collar, spring | Q.t'' - Q.ty | MY | 9 999,00 € | ||
| 28. | 49676 | Nut, flange | 1 | 2,50 € | |||
| 29. | 26130.12 | Spacer 1,2 mm | 1 | 2,50 € | |||
| 29. | 26130.13 | Spacer 1,3 mm | - | 2,50 € | |||
| 29. | 26130.14 | Spacer 1,4 mm | - | 2,50 € | |||
| 29. | 26130.15 | Spacer 1,5 mm | - | 2,50 € | |||
| 29. | 26130.16 | Spacer 1,6 mm | - | 2,50 € | |||
| 29. | 26130.17 | Spacer 1,7 mm | - | 2,50 € | |||
| 29. | 26130.18 | Spacer 1,8 mm | - | 2,50 € | |||
| 29. | 26130.19 | Spacer 1,9 mm | - | 2,50 € | |||
| 30. | 26147 | Bush, spacer | 1 | 2,50 € | |||
| 31. | 22262.19 | Valve, exhaust | 1 | 9 999,00 € | |||
| 32. | 28256 | Shaft, Power valve | 1 | 35,23 € | |||
| 33. | 19061 | Bush | 1 | 10,19 € |
